1-1734035-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1-1734035-1
Datasheet:
Description:

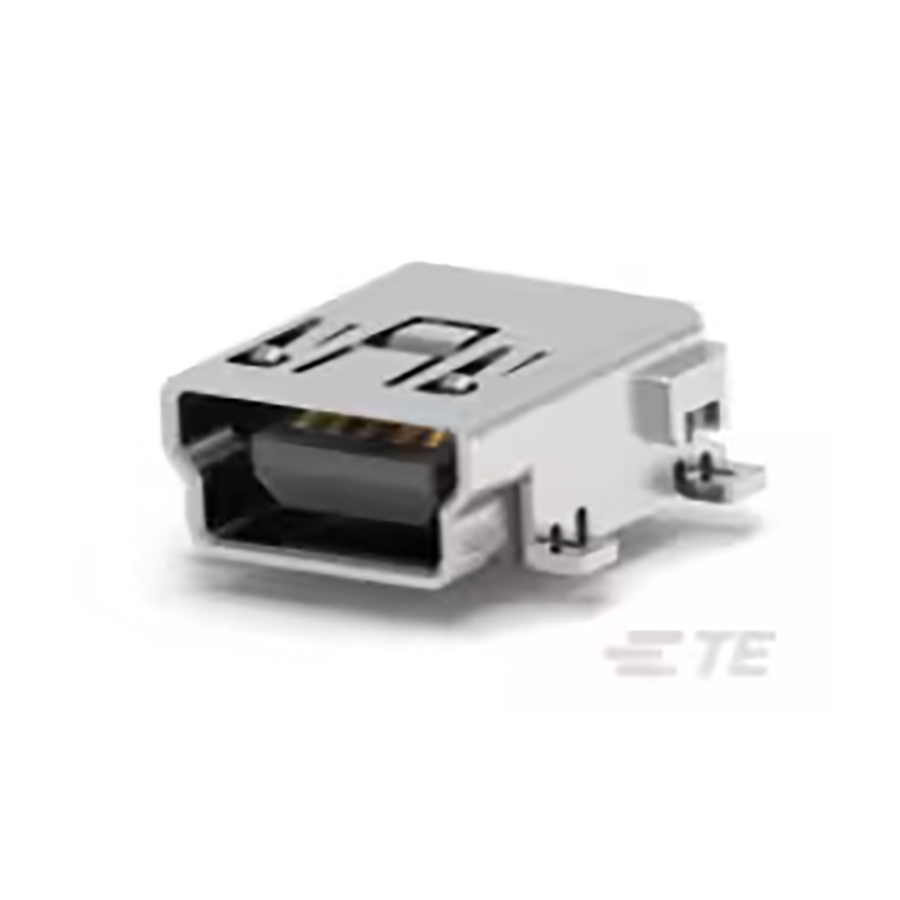

USB Connectors SMD/SMT USB - mini B Jack (Female) USB 2.0
| Parameter | Value |
|---|---|
| Length | 8.45 mm |
| Width | 7.7 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 800 µm |
| Type | USB - mini B |
| Number of Terminals | 5 |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Jack (Female) |
| Shielding | Shielded |
| Number of Contacts | 5 |
| ELV | Compliant |
| USB Standard | USB 2.0 |
| Connector Type | Receptacle |
| Number of Positions | 5 |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Contact Current Rating | 1 A |
| Housing Color | Black |
| Plating | Nickel |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 760 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Max RMS Current | 1 A |
| Mounting Angle | Right Angle |
Stock: 4637
Distributors
pcbx
pcbxUnit Price$0.66343
Ext.Price$0.66343
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.66343 | $0.66343 |
| 10 | $0.61819 | $6.18190 |
| 25 | $0.57603 | $14.40075 |
| 50 | $0.53675 | $26.83750 |
| 100 | $0.50013 | $50.01300 |
| 300 | $0.49713 | $149.13900 |
| 500 | $0.49415 | $247.07500 |
